Setup Raspberry Pis

Get every Pi ready to be used

1. Intro

Before starting, I would like to give a special thanks to NetworkChuck for the excellent video on how to set up a Raspberry Pi cluster.

This documentation page closely follows that video’s instructions, with some changes to reflect some of the updates that have been made to the Raspberry Pi Imager.

Make sure to follow the steps in this guide for all your Raspberry Pis.

2. Pre-requisites

There is a single prerequisite for this guide:

• Download and install Raspberry Pi Imager

This guide shows how to setup a Raspberry Pi 5 using Raspeberry Pi imager v1.8.5

3. Install OS

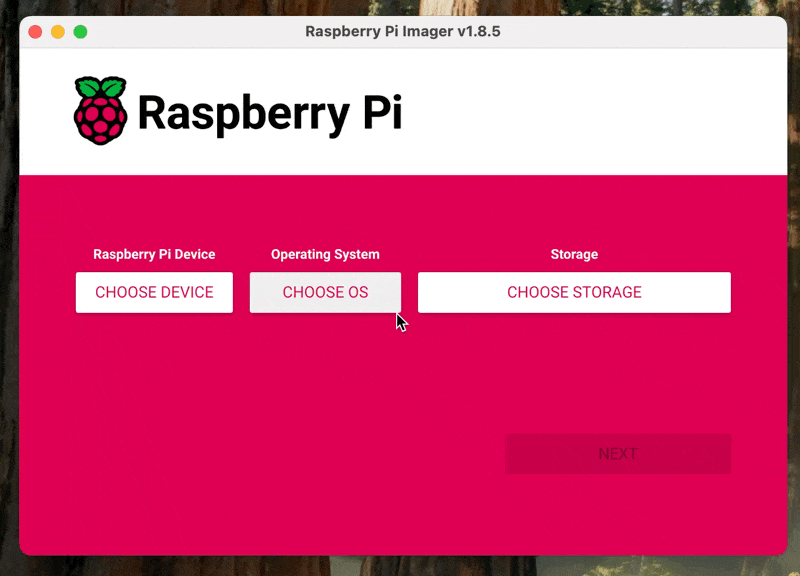

1. Choose Device

   First, select your device. In this case, we are using a Raspberry Pi 5.

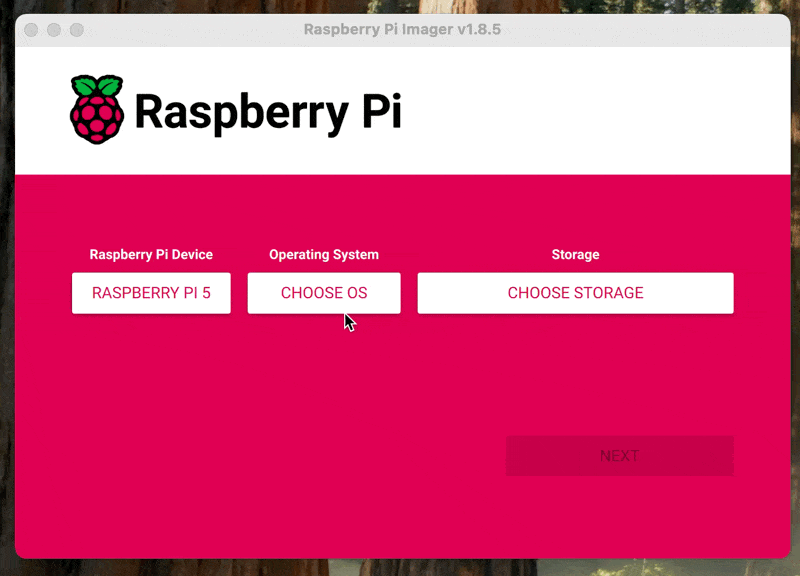

2. Choose OS

   Select Raspberry Pi OS Lite 64-bit as your headless OS.

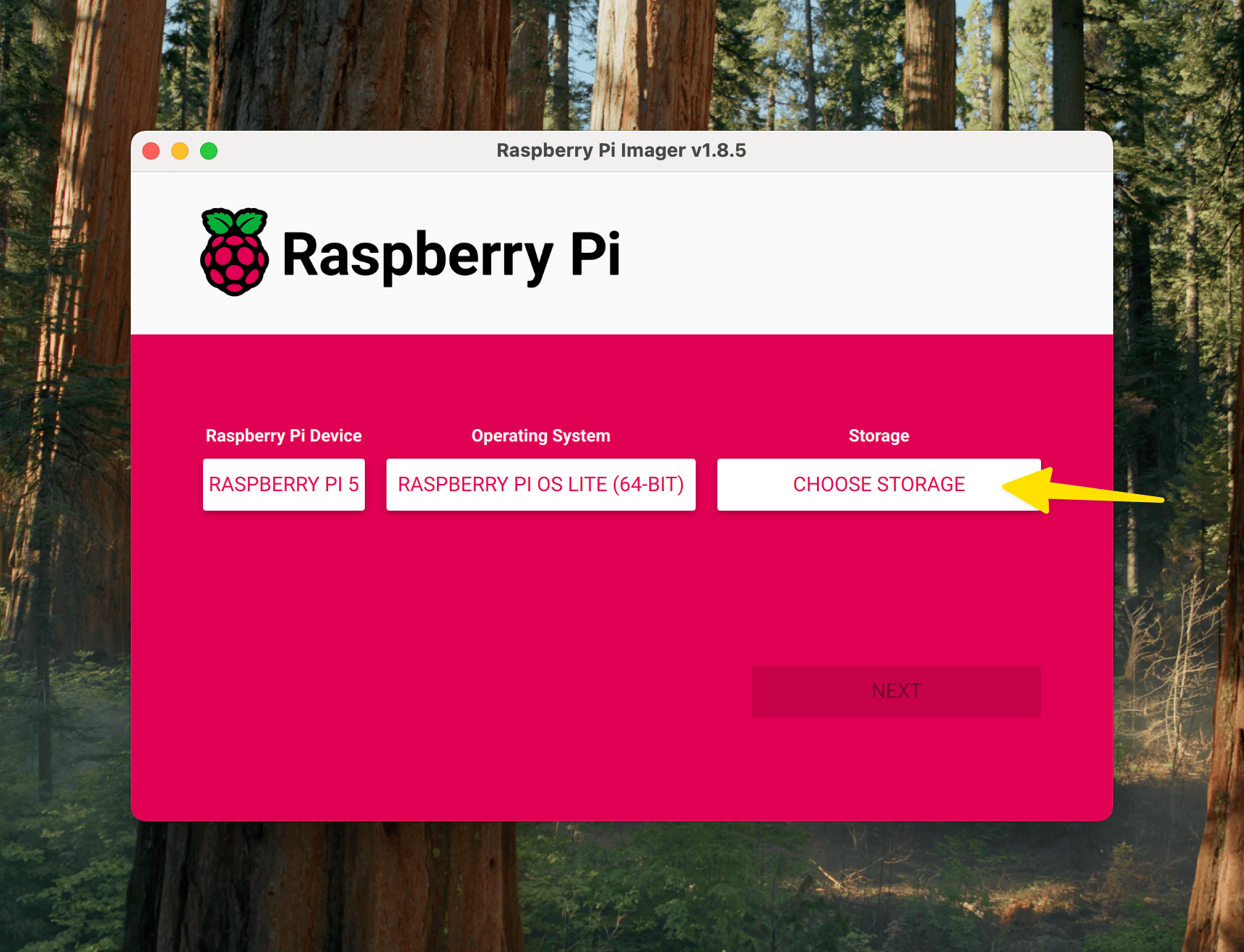

3. Choose your storage

   Select the storage device where you want to install the operating system.

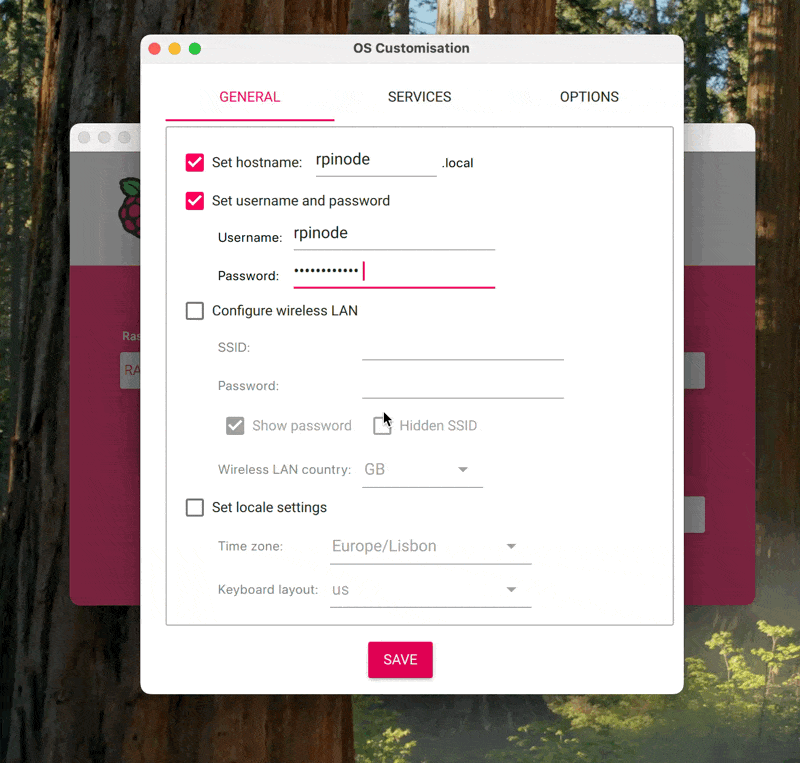

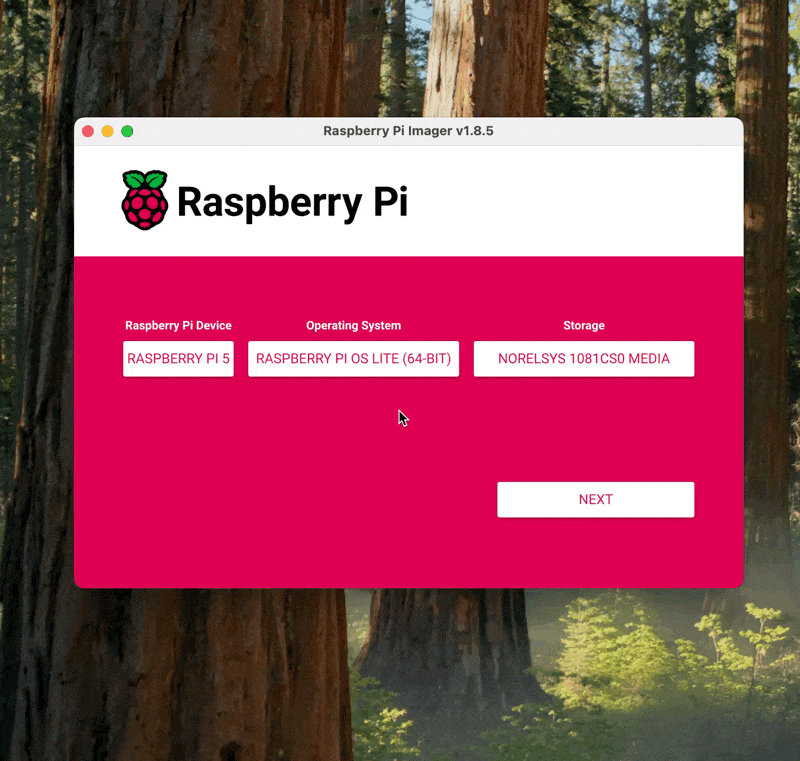

4. Set Hostname, Username and Password

   Under the General tab, set your hostname, username and password. The password you set here will be used when connecting to your node via SSH.


5. Enable SSH

   Enable SSH under the Services tab.

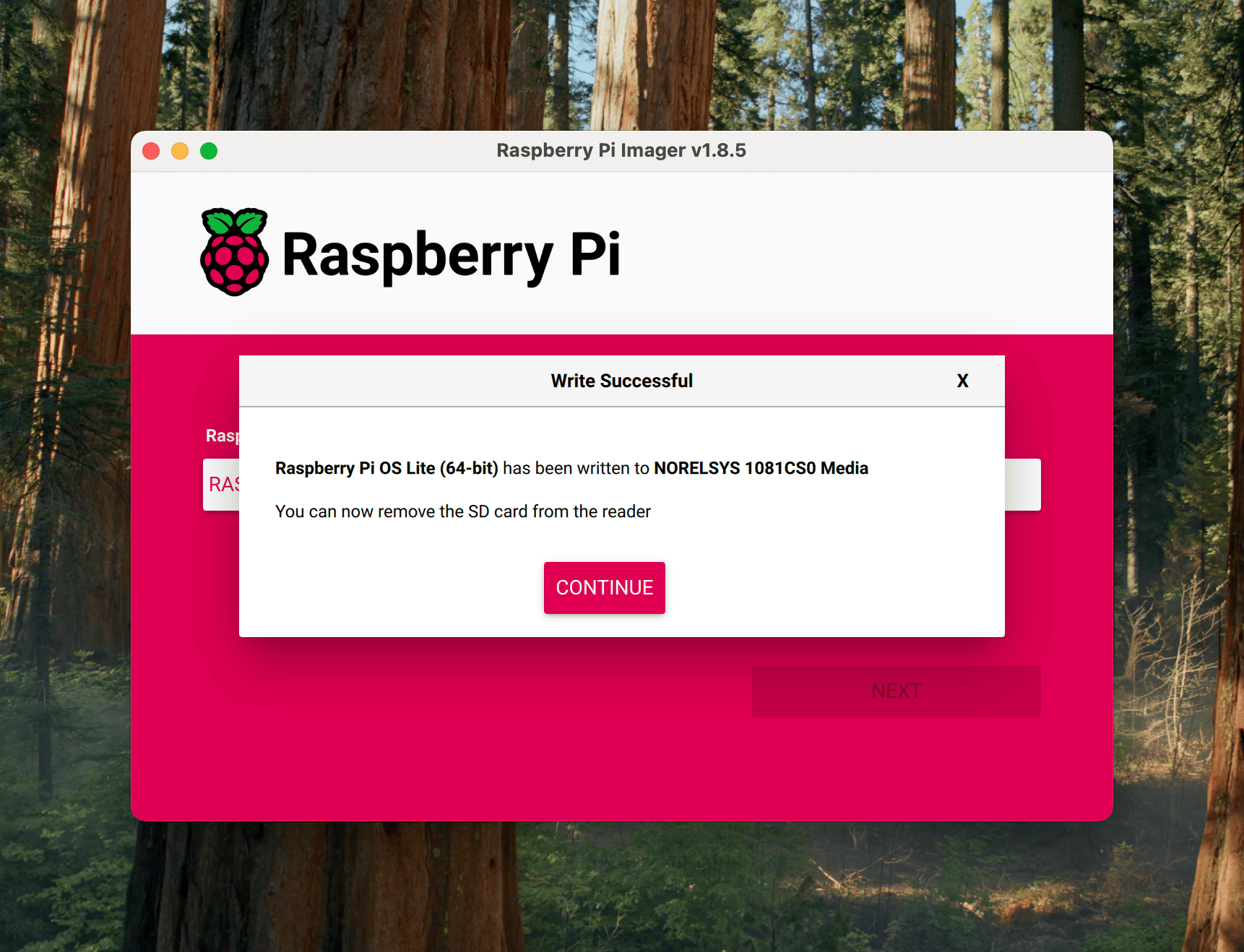

6. Save

   Save the changes, and let the Imager set everything up.


7. Boot up your Pi

   Take the storage with the OS installed on it and connect to the Pi, power it up and allow it approximately 5 minutes to complete the boot process.

3. Enable Cgroups

As mentioned in the K3s docs, standard Raspberry Pi OS installations do not start with cgroups enabled. K3S requires cgroups to start the systemd service.

The following steps will guide you through enabling cgroups on your Pi.

1. Reconnect the OS storage device to your computer

   After letting your Pi boot for the first time, turn it off and reconnect the OS storage to your computer.

2. Open cmdline.txt

   Open your OS storage device, navigate to and open the file named cmdline.txt.

3. Enable cgroups

   Add the following code to the end of the file:

   cgroup_memory=1 cgroup_enable=memory

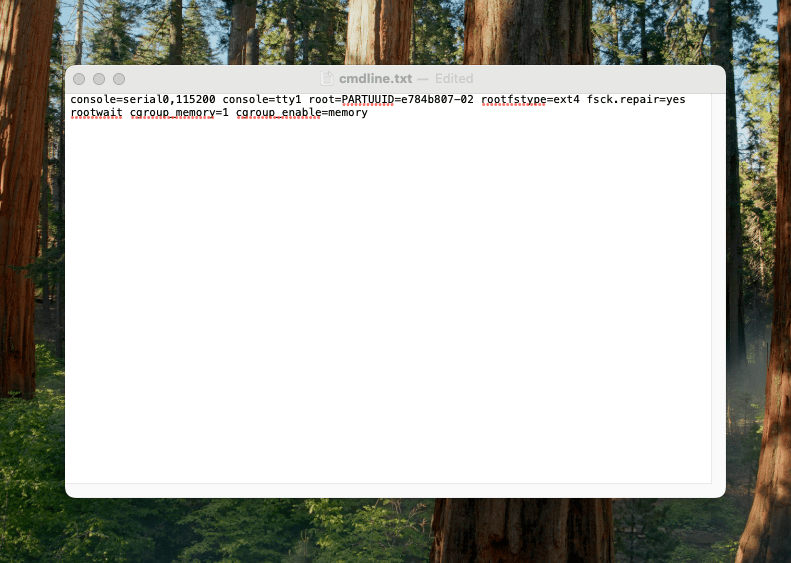

   You should end up with something like this:



   After that do not forget to save.

4. Boot up your pi (again)

   After editing cmdline.txt, remove the storage device, connect it to the Pi, and power it up to reboot.

4. Setting a static IP

Now all that is left is to set a static IP to whatever we would like to have.

1. Connect to your Pi via SSH

   Open the terminal and connect to your Pi using:

   ssh <username>@<hostname>


2. Set the IP

   To set a static IP, we define:

   • ipv4.addresses – The IP of this machine.
   • ipv4.gateway – The router or default gateway.
   • ipv4.dns – The DNS server to use (probably same as router).
   • ipv4.dns – Leave it manual.

   Define these values and use them for the following command:

   nmcli connection modify "Wired connection 1" \
   ipv4.addresses <your_desired_ip>/24 \
   ipv4.gateway <ip_of_router> \
   ipv4.dns <ip_of_router> \
   ipv4.method manual


3. Reboot Pi

   For these changes to take effect we need to reboot our Pi.

   reboot


You are done setting up your Raspberry Pis!
